M1™ Series - Passive

Body-Sensitive Magnetic Pickup

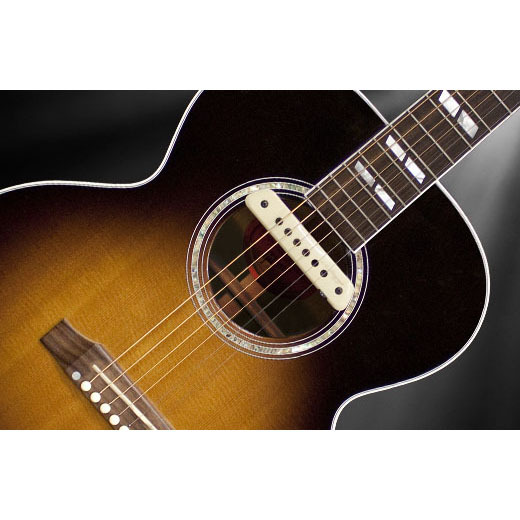

The M1 is for players who love big acoustic tone With high feedback resistance on any stage. Combining the natural characteristics of your guitar’s soundboard With a punchy string attack, the M1’s body-sensitive design provides enhanced realism while cutting through a loud mix.

Body-Sensitive Design

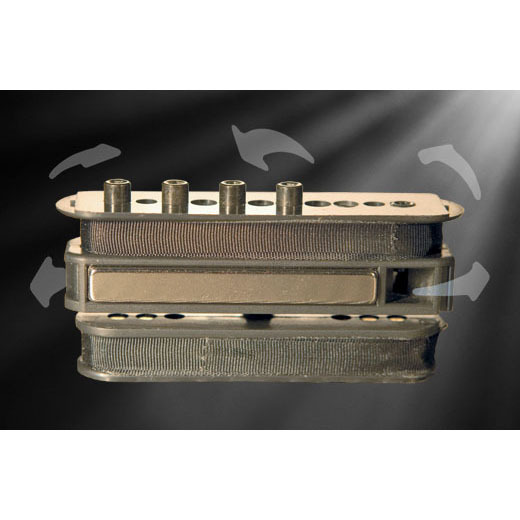

The M1 is a patented humbucking pickup With a twist. In a common stacked humbucker, the lower coil cancels hum, but doesn’t contribute anything positive to the sound. We unlock the lower coil With a carefully tuned support that allows it to capture higher frequency resonances. As the pickup moves With the guitar’s soundboard, a body signal is created in the suspended coil that adds presence and realism to your amplified sound.

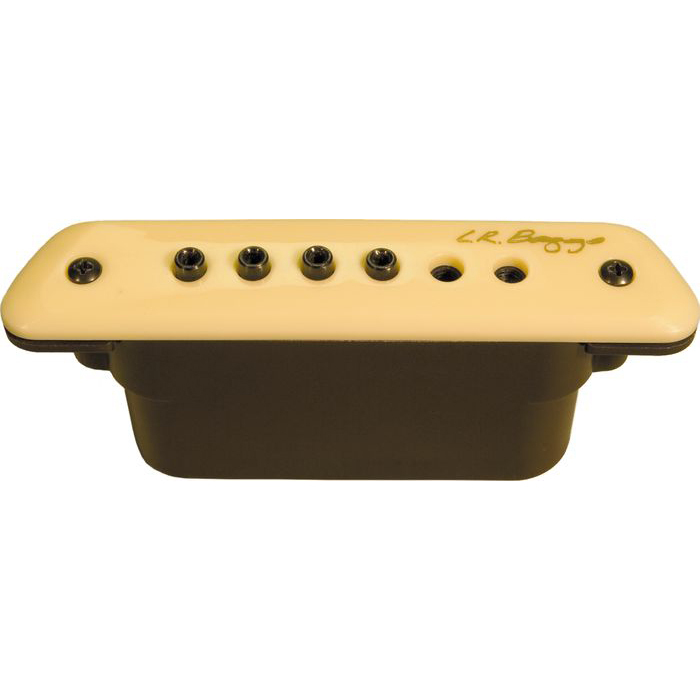

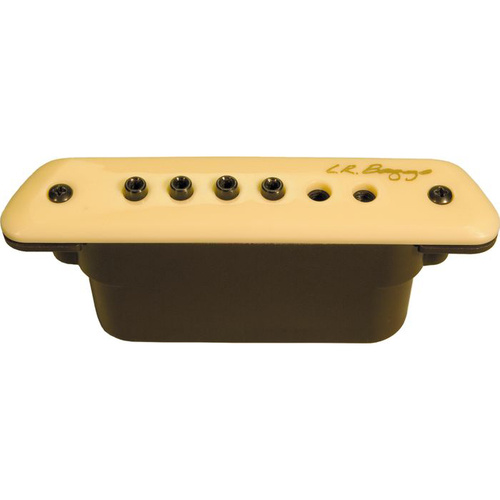

M1
Available in completely passive design, the M1 delivers professional amplification in minutes. Adjustable pole pieces provide balance from string to string and the 1/8” jack makes removing the pickup a snap for when you are in the studio. Install the pickup With the strapjack or use the 10’ external soundhole cable for absolutely no modifications to your prized instrument.

FEATURES:

  • Highly Feedback-resistant
  • Adjustable pole pieces
  • A perfect blend of string and body signal
  • Quiet hum-free operation
  • Built-in gold plated 1/8" jack
  • Includes a pre-wired strapjack harness and 10' cable for no modifications



Download M1™ Series Guides

M1 Installation Manual & User Guide
PLEASE NOTE: LR Baggs products must be installed by an authorized LR Baggs dealer to qualify for warranty coverage. Warranty support will not be provided for home or hobbyist installations.



2 YEAR LIMITED WARRANTY

SKU LRBM1
Barcode # 897042002303
Brand LR Baggs
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.070m
Shipping Length 0.160m
