Element Active System™

Advanced Undersaddle Pickup With Unrivaled Dynamic Range

Unlike typical undersaddle acoustic guitar pickups that are dependent on string compression for their sound, the Element was engineered to mirror the soundboard’s actual movement as you play. At the heart of the pickup, a flexible film sensor only 2 thousandths of an inch thick picks up the guitar’s most delicate nuances. Tracking the motion of the top rather than a direct string attack suppresses “quack” caused by compression and unlocks the Element’s unrivaled dynamic range. The pickup’s minimalist construction lessens any influence on the acoustic properties and creates an intimate coupling between the pickup and guitar for the highest fidelity possible.

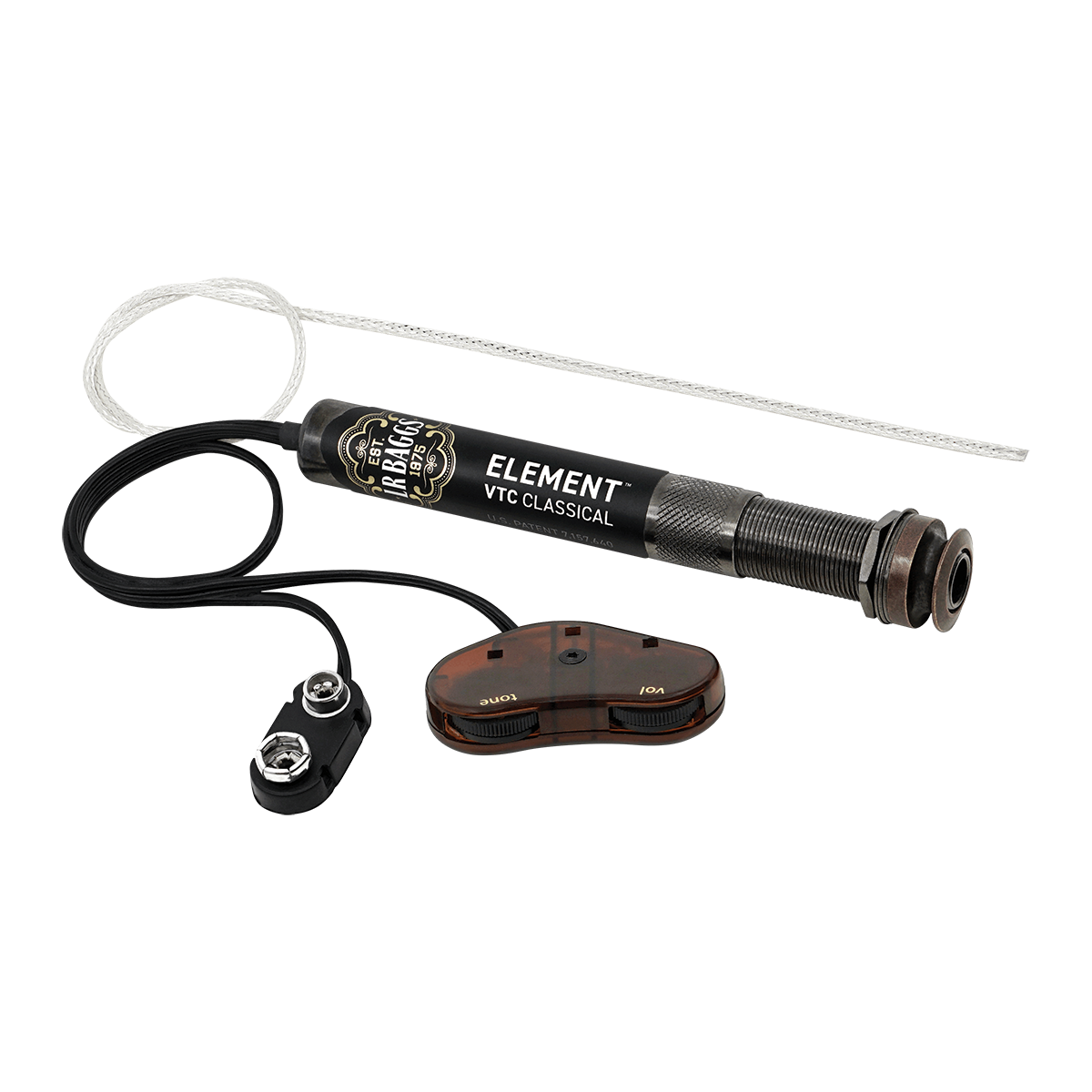

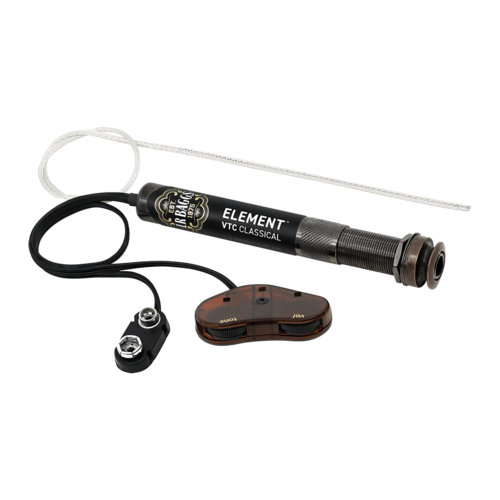

Element Active System™ VTC-N
(Volume and Tone Control – Classical)

The EAS-VTC-N builds on the strengths of the EAS-C With the addition of a treble tone control and a special low frequency compression circuit. Delivering the same dynamically rich, high fidelity sound as the steel string version, the Element Active System Classical is specifically voiced to articulate the frequency response of nylon string instruments.

FEATURES:

• All-discrete endpin preamp
• Pre-attached Element pickup
• Fits both 3/32” and 1/8” saddle slots
• Built-in LF compressor
• Soundhole mounted volume and tone control
• Battery type: Single 9V
• Battery life: 1,000 hrs

Options:
STEEL STRING:
ELEMENT ACTIVE SYSTEM™
ELEMENT ACTIVE SYSTEM™ VTC
STAGEPRO ELEMENT™

NYLON STRING:
ELEMENT ACTIVE SYSTEM™ CLASSICAL
ELEMENT ACTIVE SYSTEM™ VTC-N

Download Element Active System™ Series Guides

Element User Guide

Element Installation Manual
PLEASE NOTE: LR Baggs products must be installed by an authorized LR Baggs dealer to qualify for warranty coverage. Warranty support will not be provided for home or hobbyist installations.
