Portable bridge-mounted piezo for ukulele

UK-1 makes it simple to reproduce the authentic sound of your uke without modification.

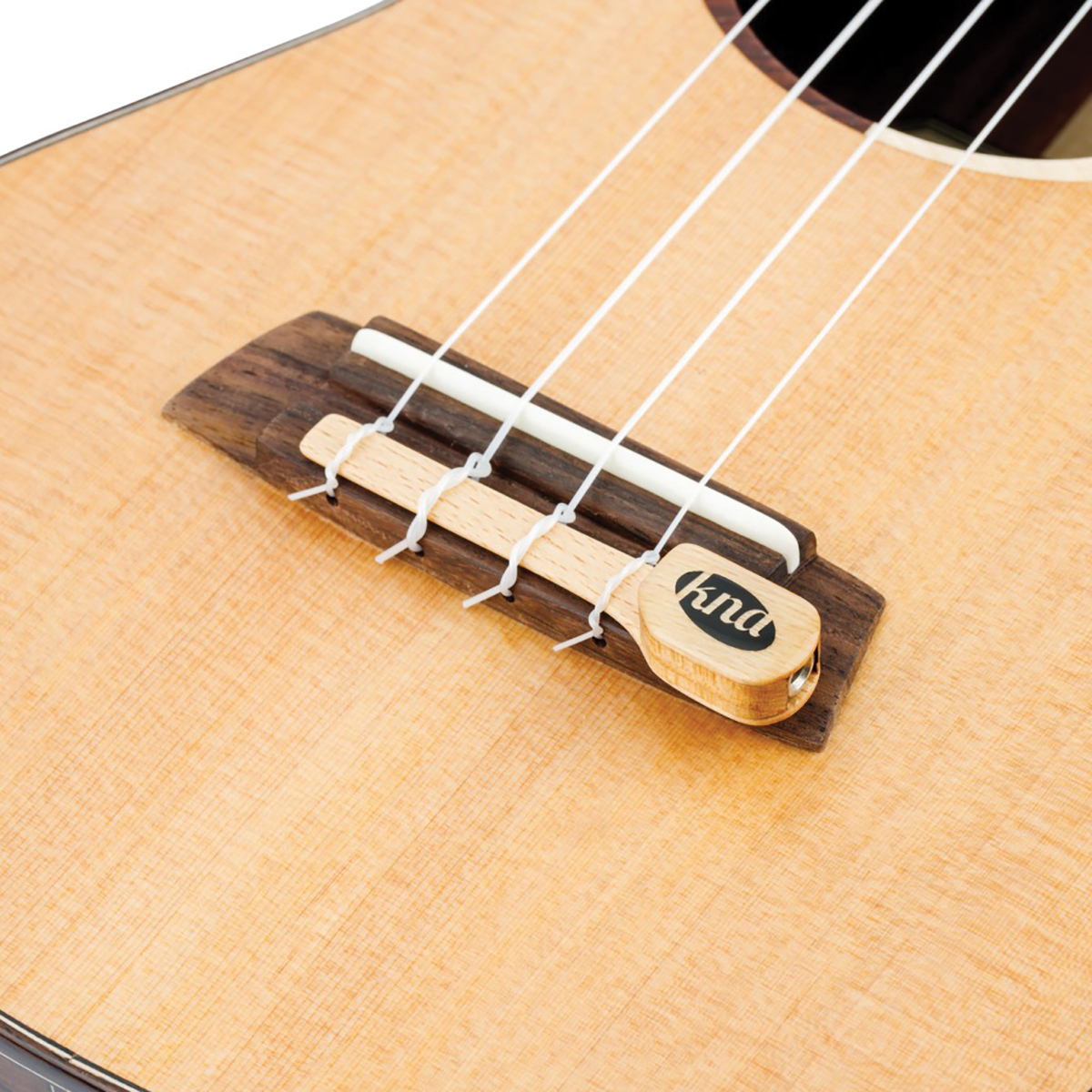

Simply slide this piezo ukulele pickup onto the tie block and retighten the strings.

It's a passive uke pickup that fits most soprano, concert, tenor, and baritone ukuleles with a tie block.

Features:

Installs with no modification

Simply slide this piezo ukulele pickup onto the tie block and retighten the strings.

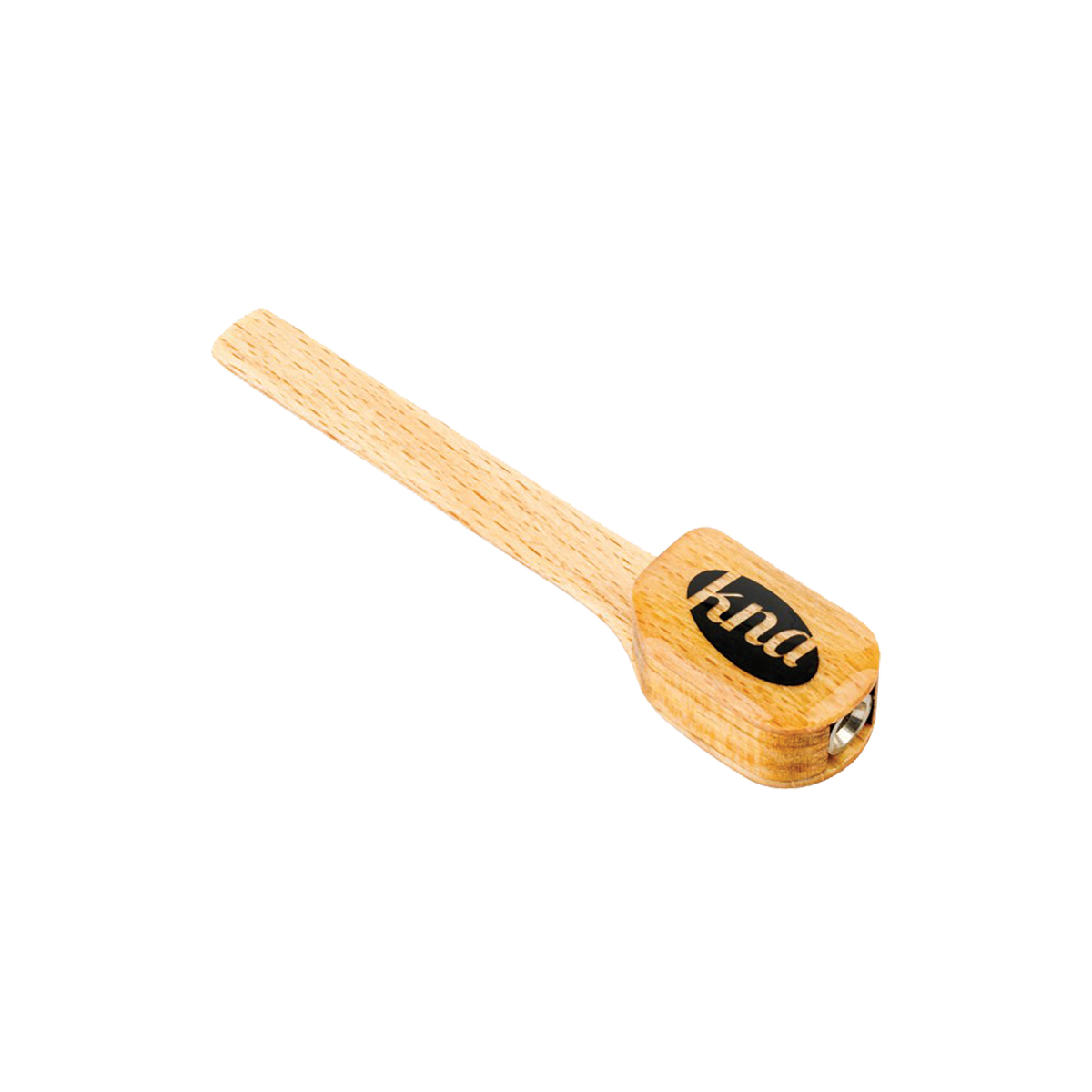

Wood case

The piezo element is encased in elegant and stylish White beech while retaining lightweight assembly to achieve maximum tonal sensitivity.

Natural sound

UK-1 has a passive design that reproduces the natural sound of the with no need for a battery.

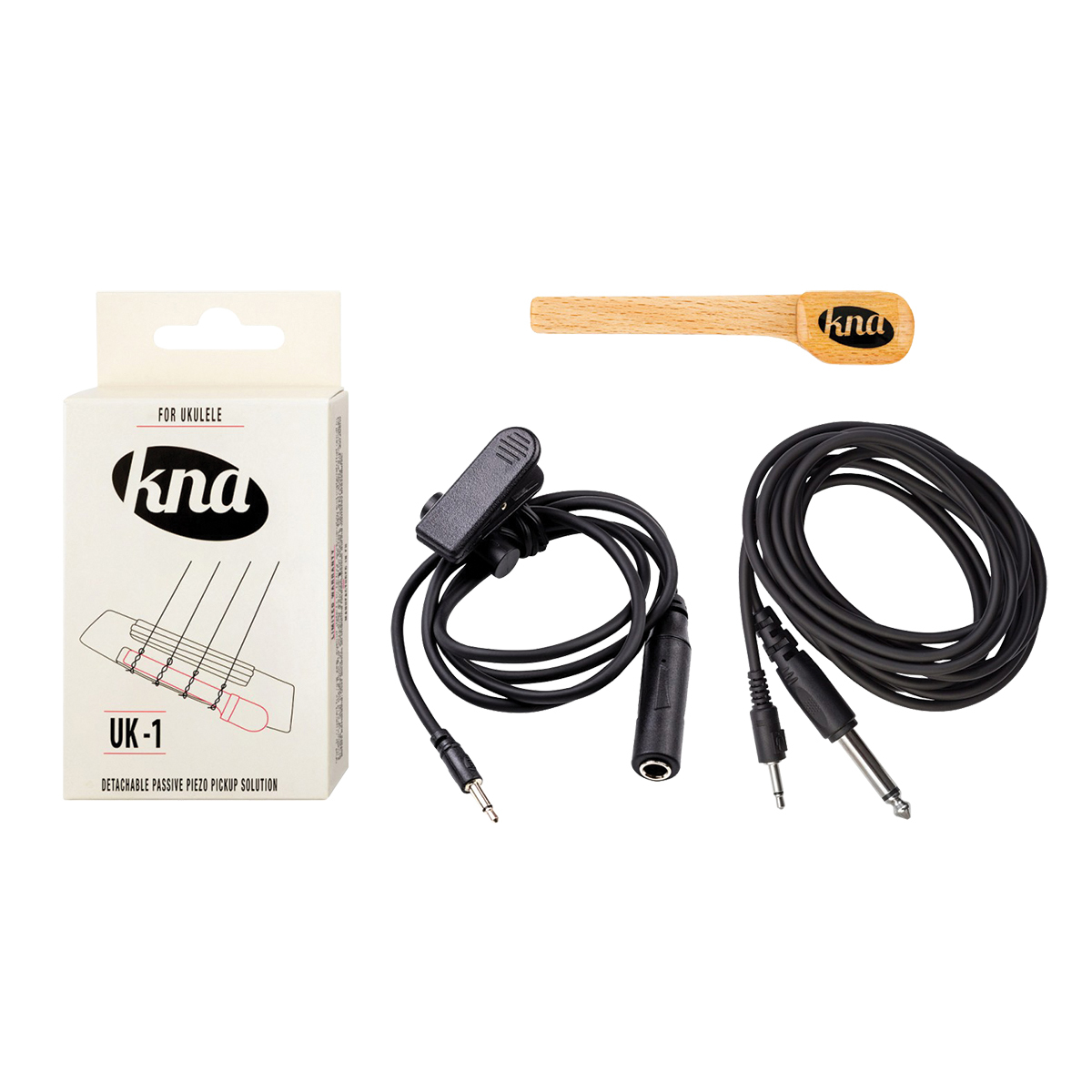

Cable included

A 1/8" to 1/4" cable is included for easy connection to an amplifier or mixer.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

specifications
Weight 3.1g / 0.109oz
Overall length 74____ / 2,91"
Height / jack housing 9mm / 0.35"
Active element measurements
Lenght 55mm / 2.17"
Width 7.75mm / 0.31"
Thicknes

1.5mm ± 0.05mm

0.059" ± 0.002"

Wood White beech
Maximum Impedance 500 ‰ã_
Cable

2.5meter / 8'

1 YEAR LIMITED WARRANTY

SKU KNAUK1-V2
Barcode #
Brand KNA Pickups
