Portable bridge-mounted piezo with volume control for steel-string acoustic guitar

With onboard volume control, SG-2 is a perfect choice in a piezo pickup for guitar. It’s an acoustic bridge pickup that transfers the natural sound of your instrument without requiring modification.

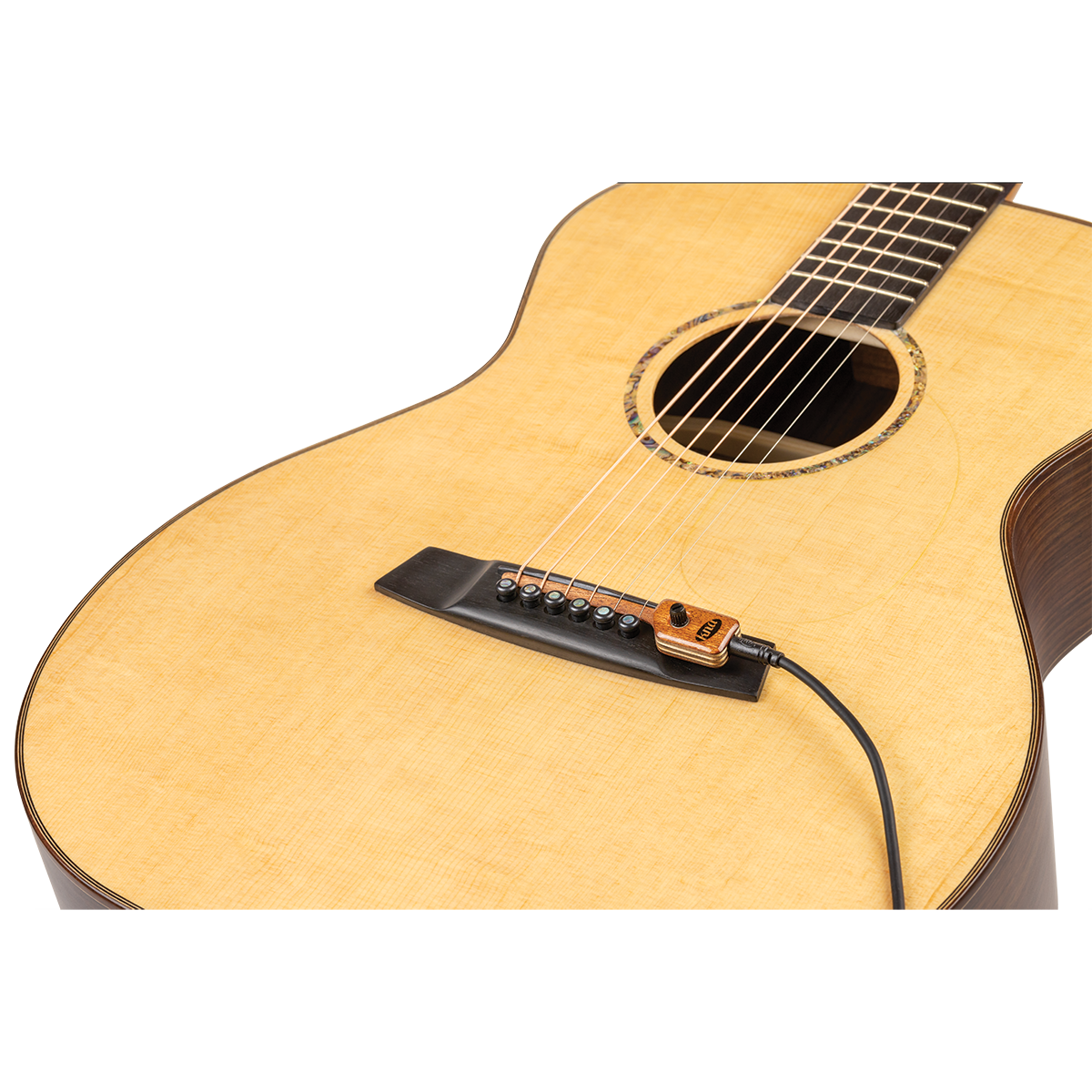

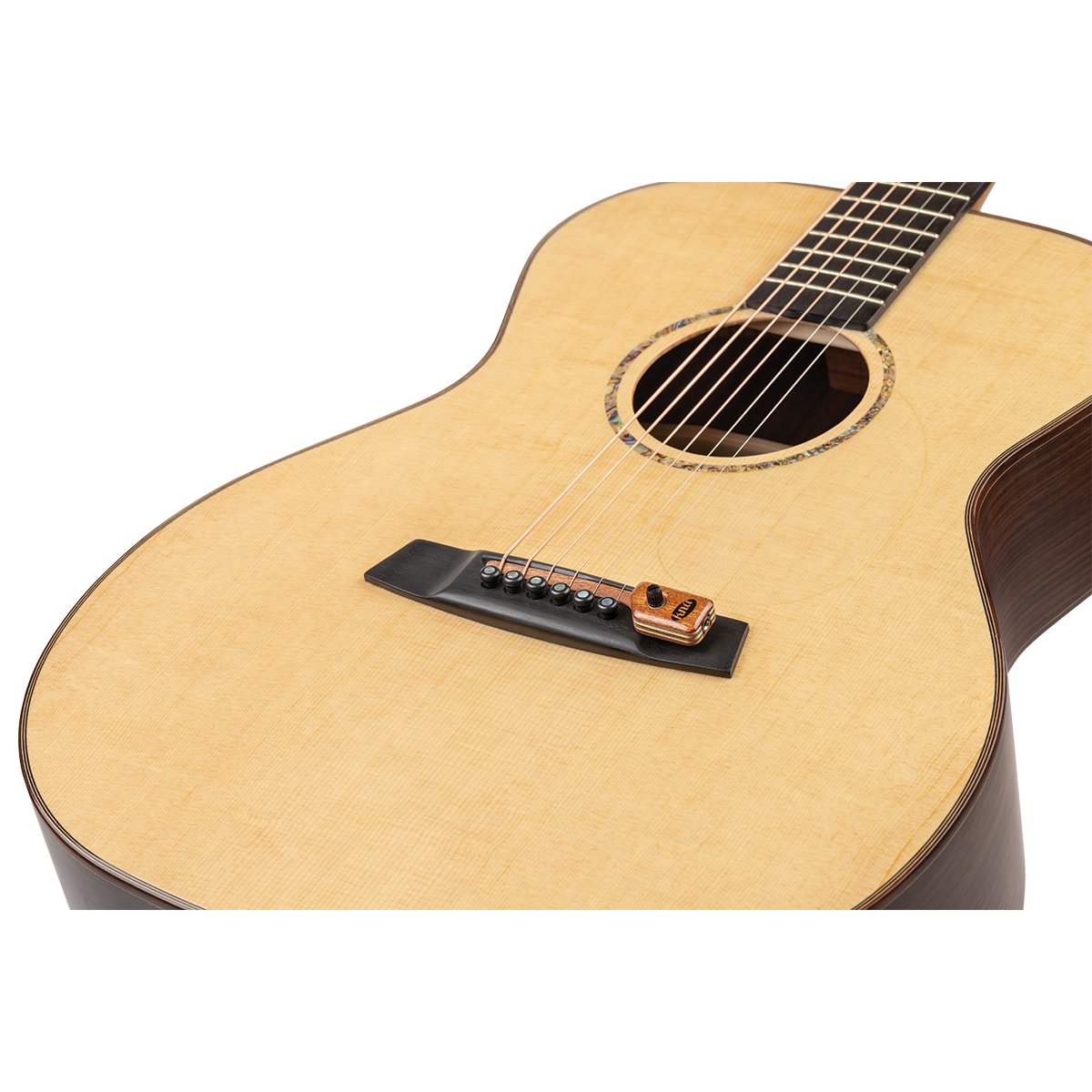

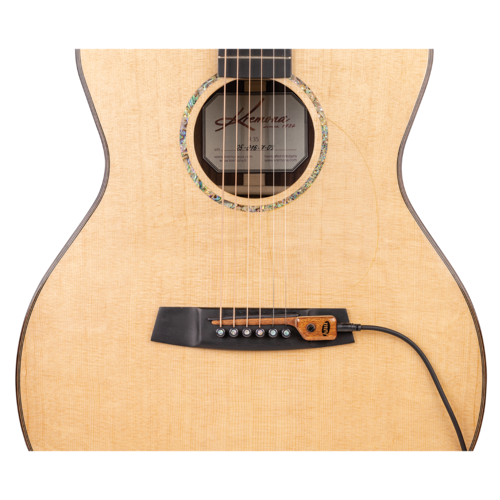

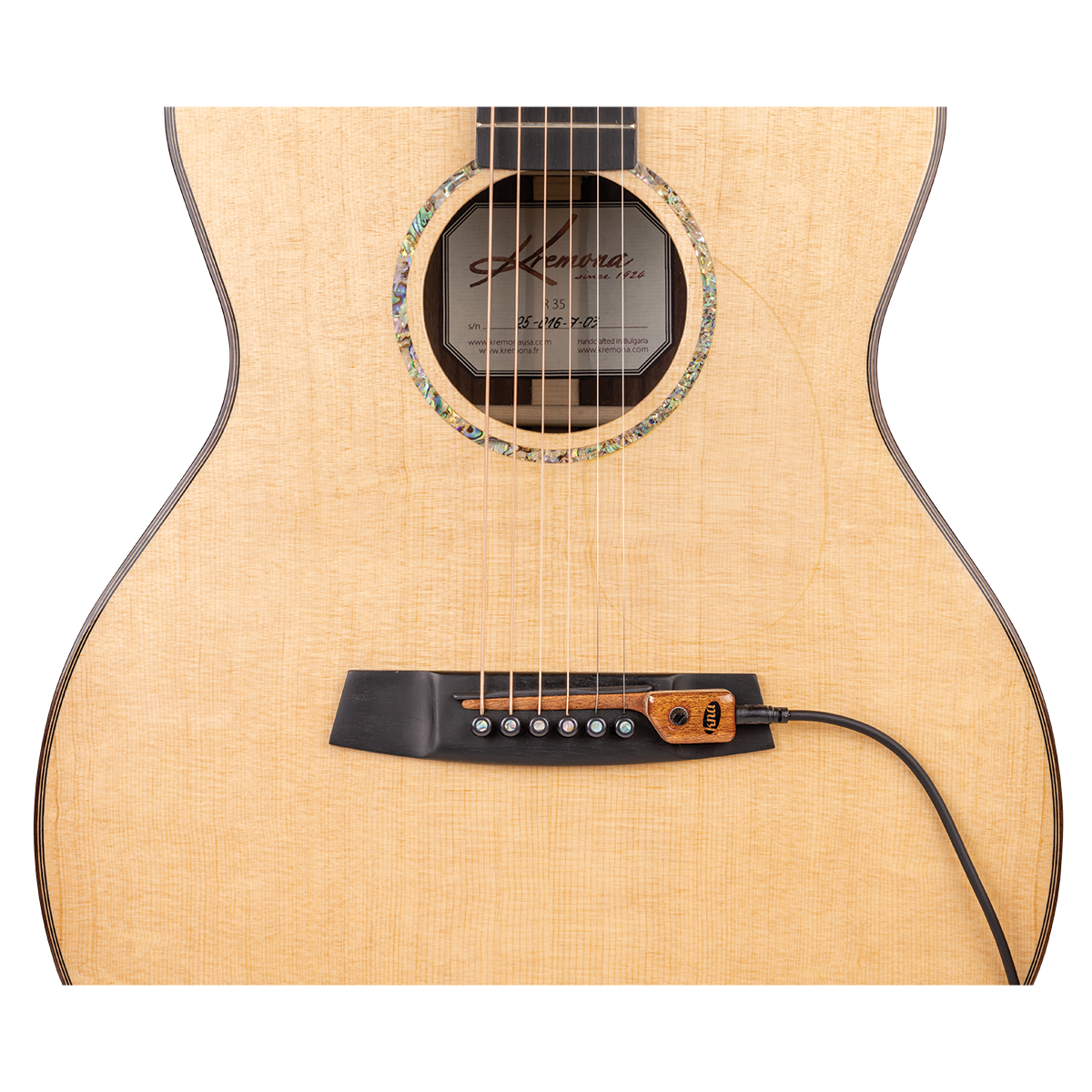

SG-2 installs safely and securely between the bridge saddle and pins, held in place by the tension of tuned strings.

Features:

Install with no modification

SG-2 installs safely and securely between the bridge saddle and pins, held in place by the tension of tuned strings.

Onboard volume control

Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.

Wood case

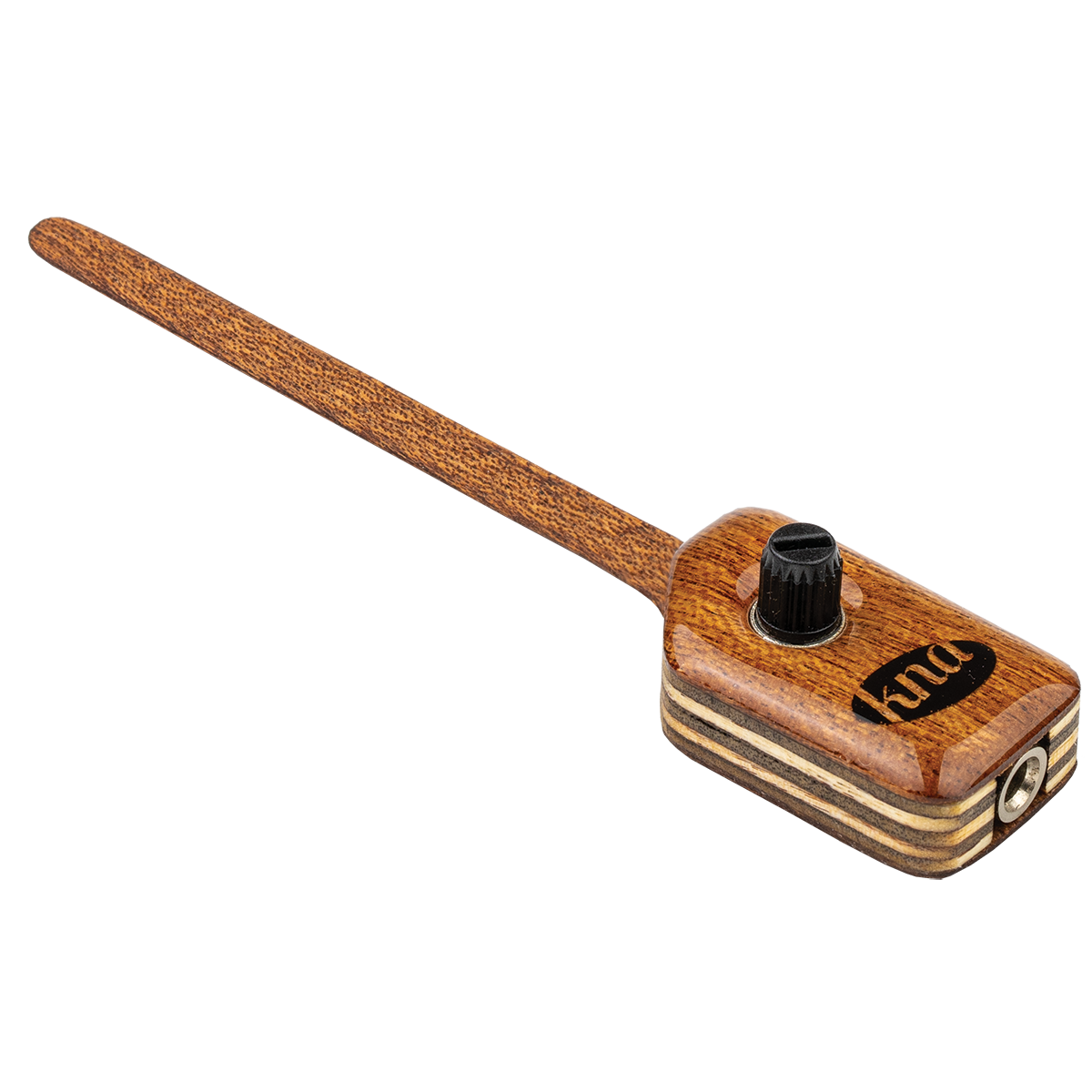

The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

Natural Sound

SG-2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

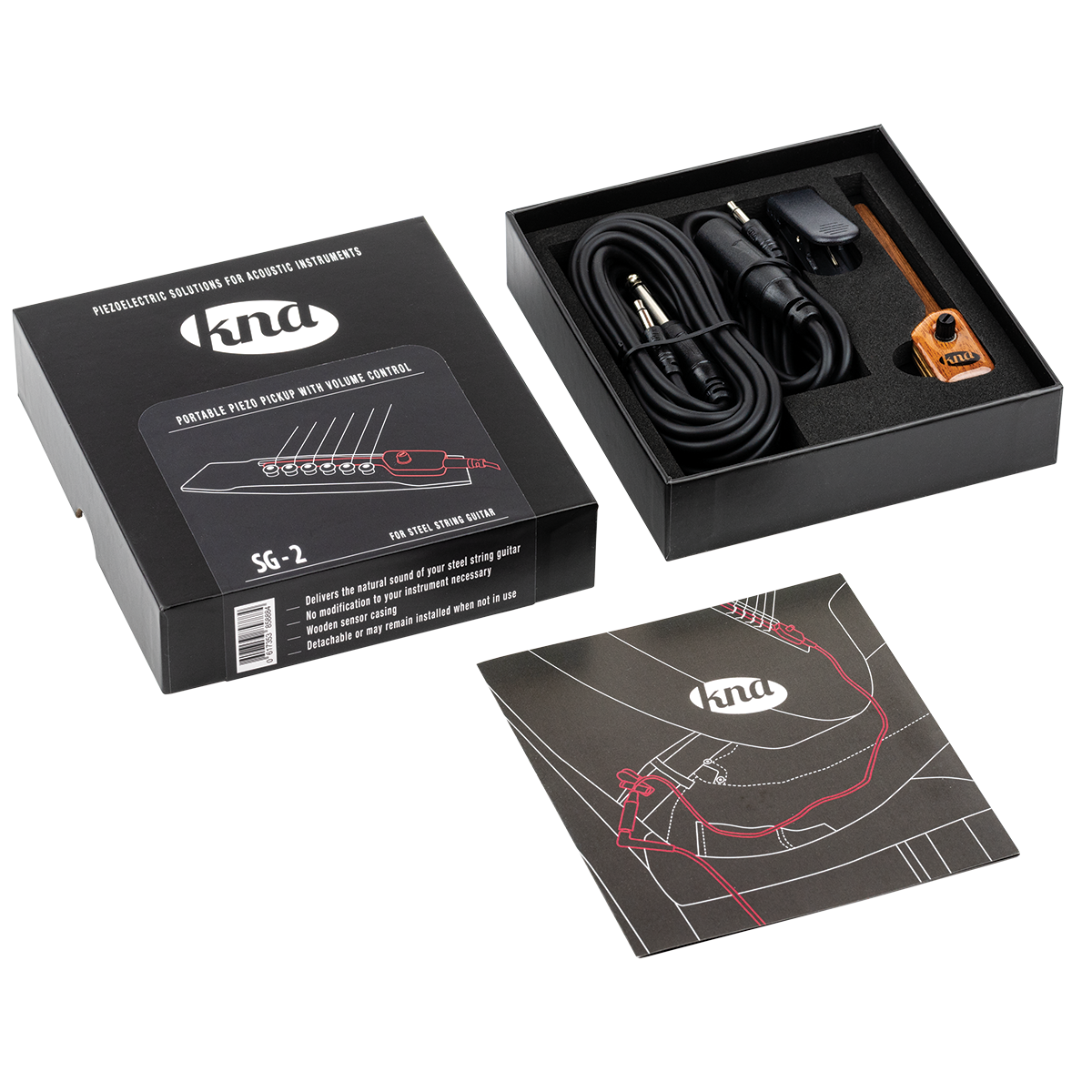

Complete set

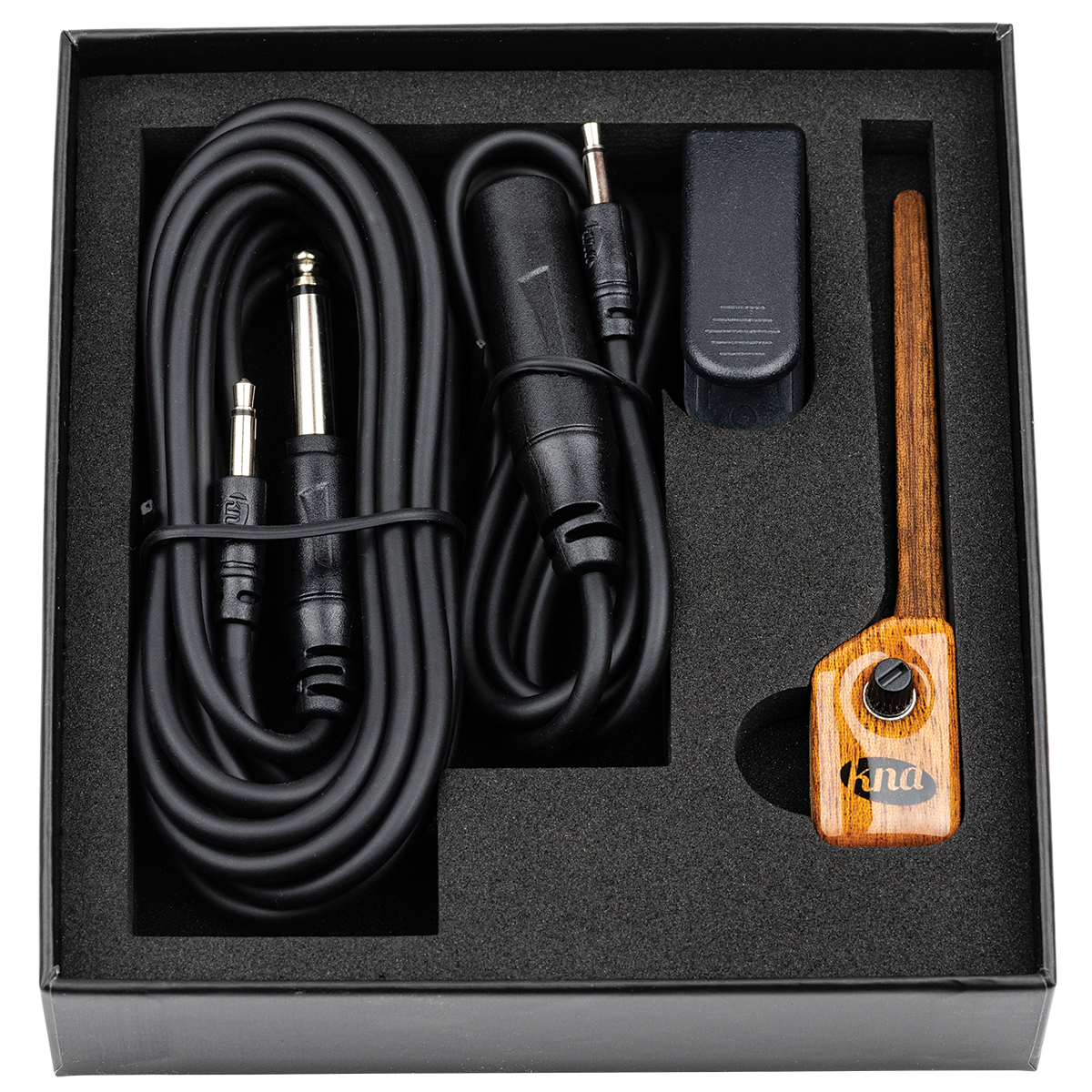

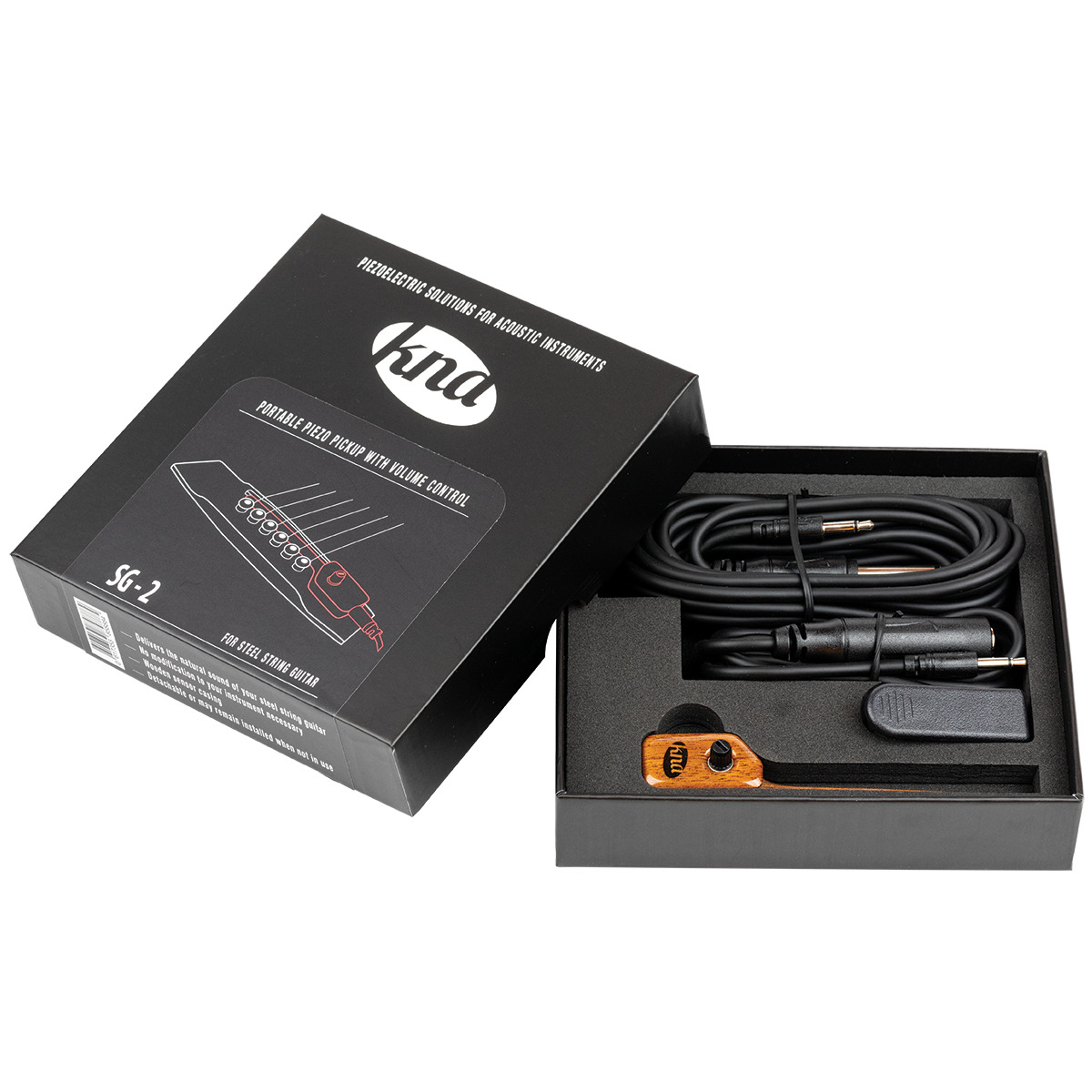

Two cables are included — a 9-ft. 1/8" to 1/4" and a 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

 SPECIFICATIONS
Weight 5.85g. / 0..21oz
Overall length 100.5mm / 3.96"
Height / jack housing 15.5mm / 0.61"
Active element measurements
Length 73mm / 2.87"
Width 9.6mm / 0.38"

Thickness

2mm ± 0.05mm

0.079" ± 0.002"

Wood Mahogany
Maximum Impedance 500 Ω
Cables
Jumper cable with safety clip  1meter / 3'
Amp cable 3meter / 9'

1 YEAR LIMITED WARRANTY

SKU KNASG2
Barcode # 617353858884
Brand KNA Pickups
Shipping Weight 0.2250kg
Shipping Width 0.033m
Shipping Height 0.144m
Shipping Length 0.130m
