Portable bridge-mounted piezo for nylon-string guitar

NG-1 version 2 is the perfect nylon string guitar pickup choice for guitarists who need a piezo pickup to transfer the natural sound of their instrument.

It's a classical guitar pickup that brings true nylon-string sound without modification to the instrument.

Features:

Installs with no modification

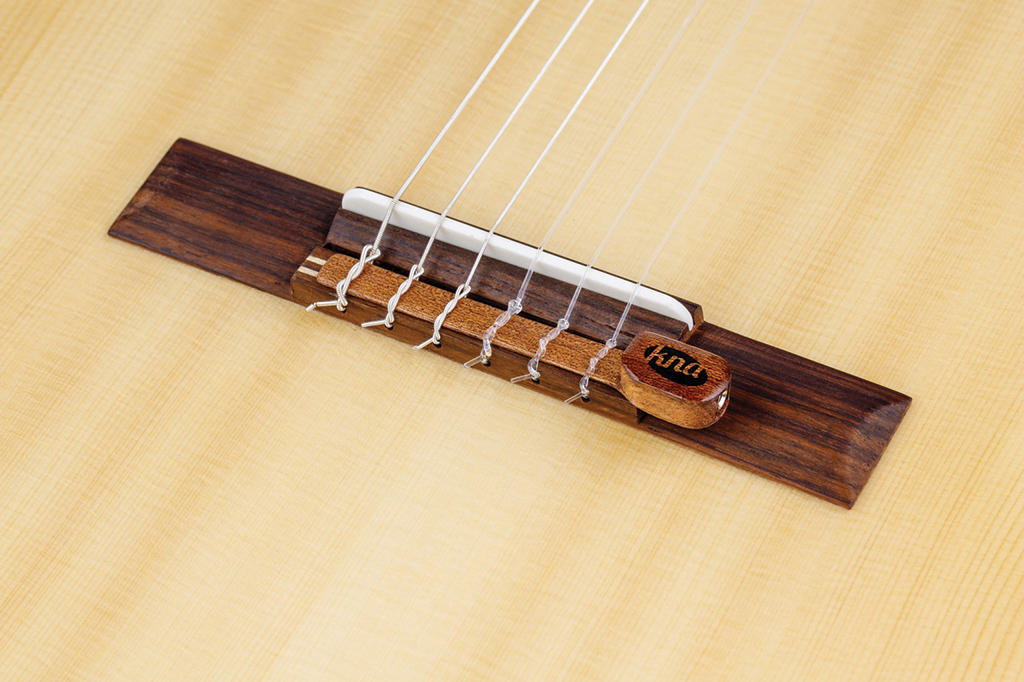

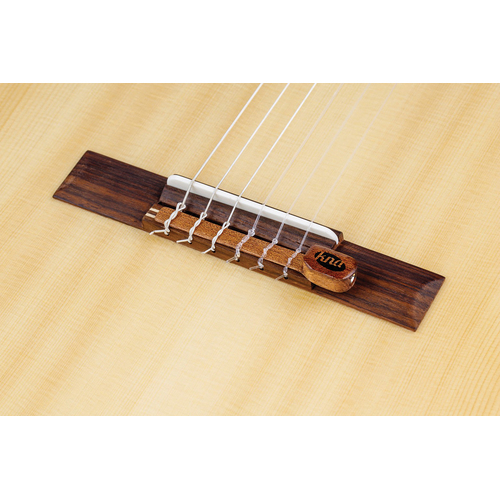

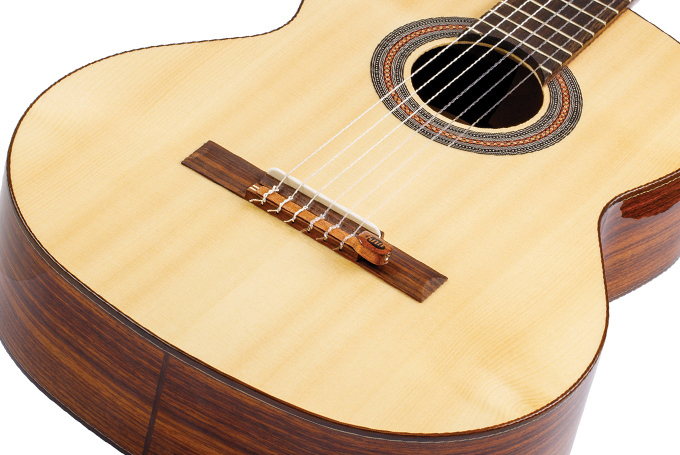

NG-1 version 2 installs safely and securely on the classical or flamenco guitar tie block utilizing the tension of the strings.

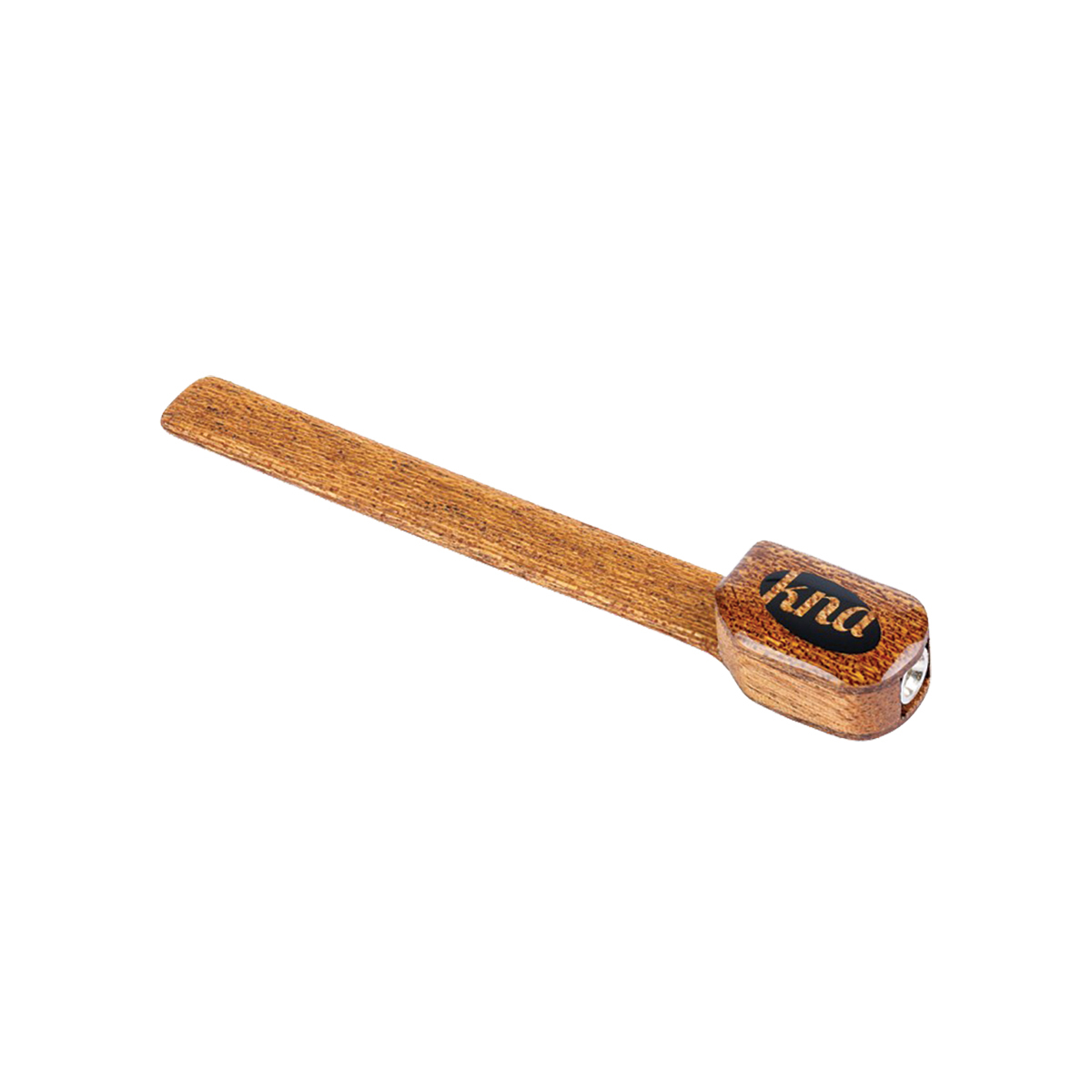

Wood case

The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

Natural sound

NG-1 version 2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

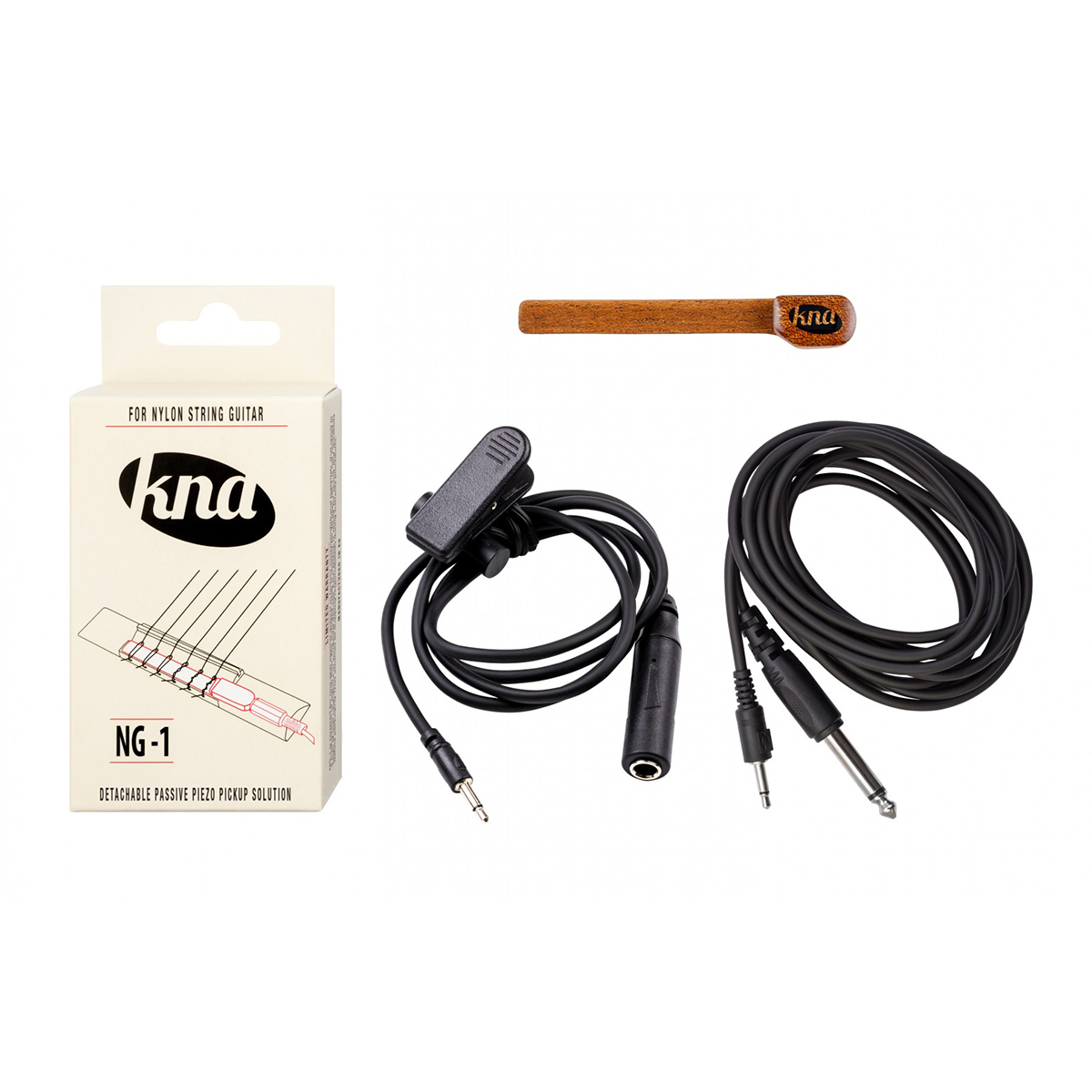

Cable included

A 1/8" to 1/4" cable is included for easy connection to an amplifier or mixer.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

 specifications
Weight 3.8g. / 0.137oz
Overall length 74mm / 2.91"
Height / jack housing 9mm / 0.35"
Active element measurements
Length 73mm / 2.87"
Width 9.6mm / 0.38"

Thickness

2mm ± 0.05mm

0.079" ± 0.002"

Wood Mahogany
Maximum Impedance 500 ‰ã_
Cable

2.5meter / 8'

1 YEAR LIMITED WARRANTY

SKU KNANG1-V2
Barcode #
Brand KNA Pickups
