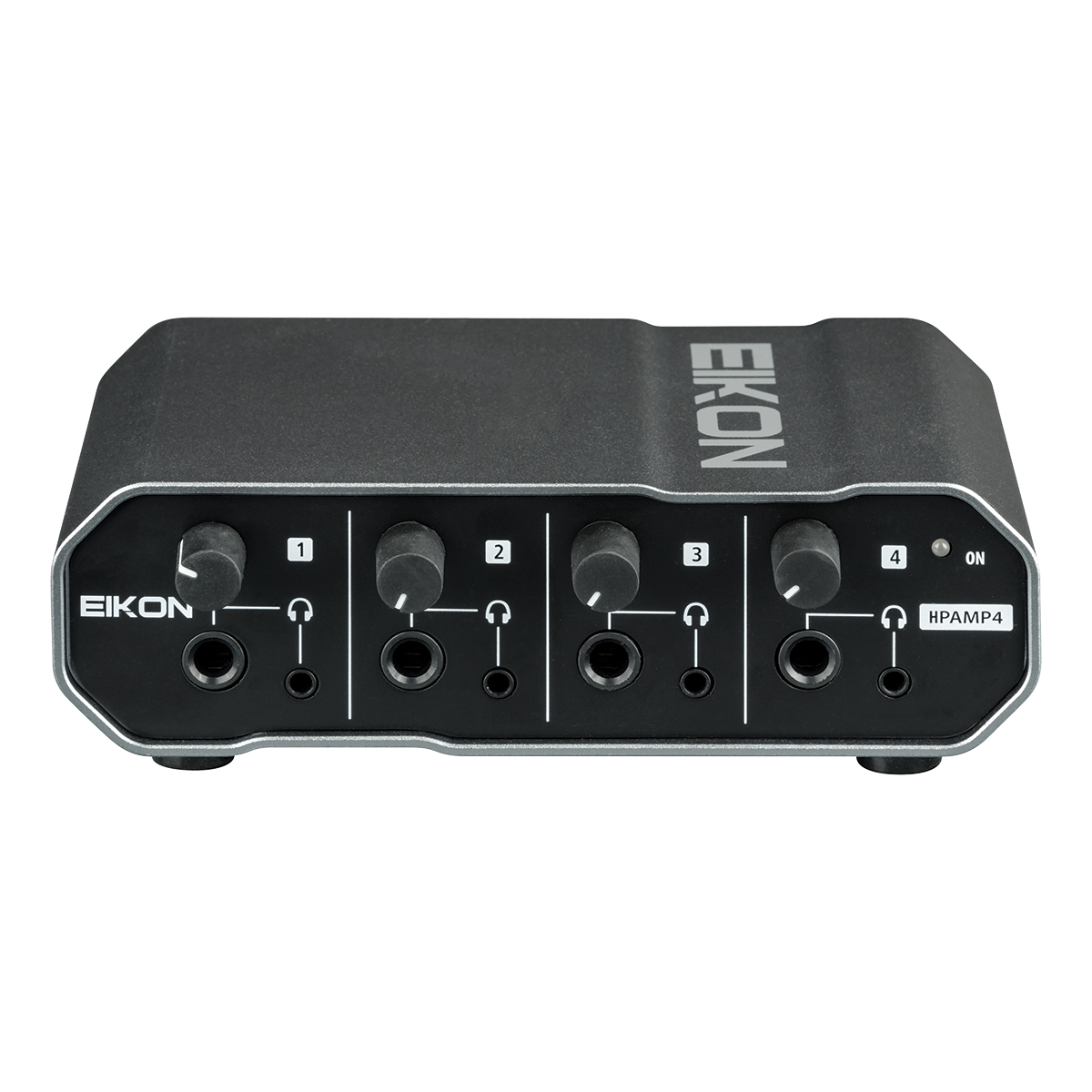

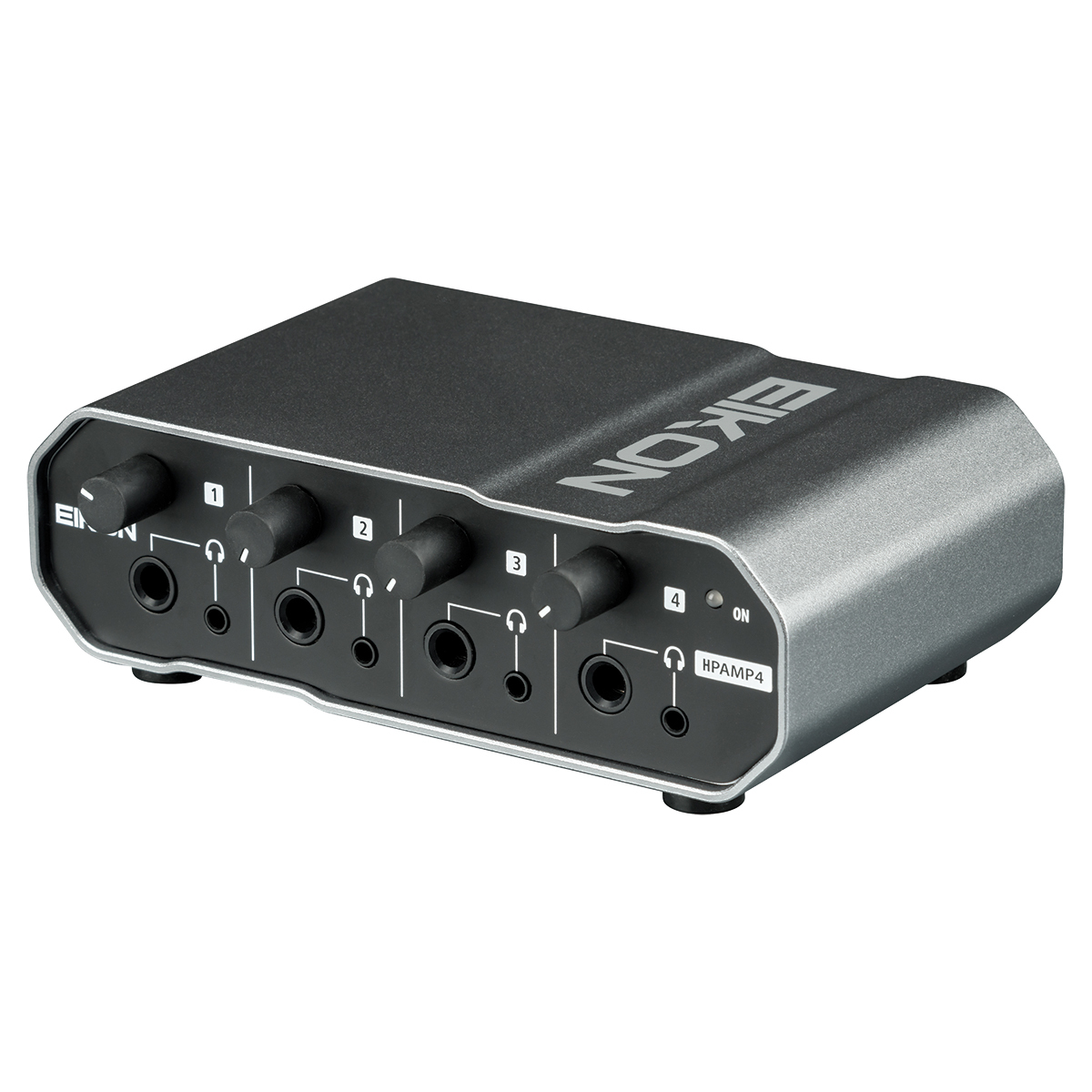

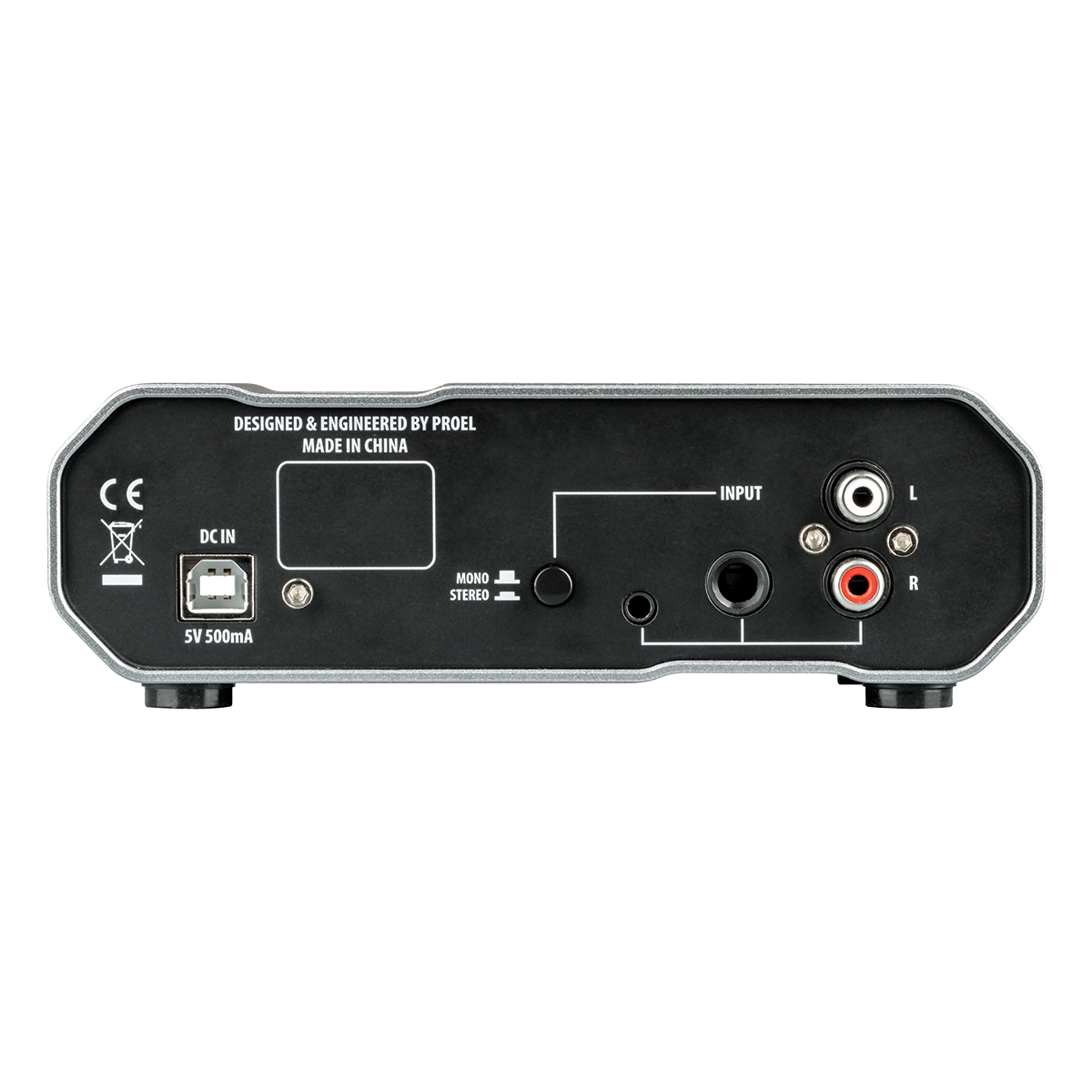

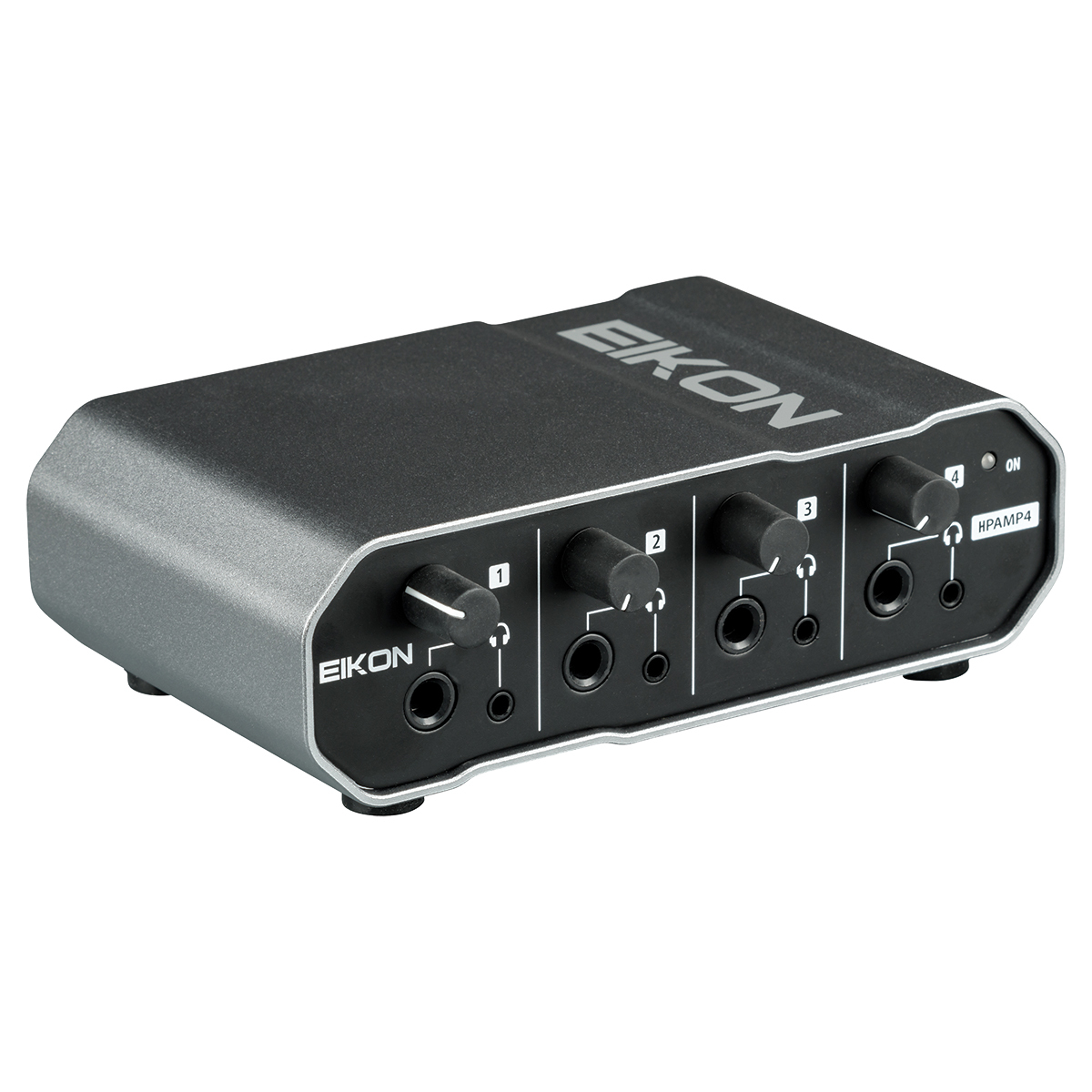

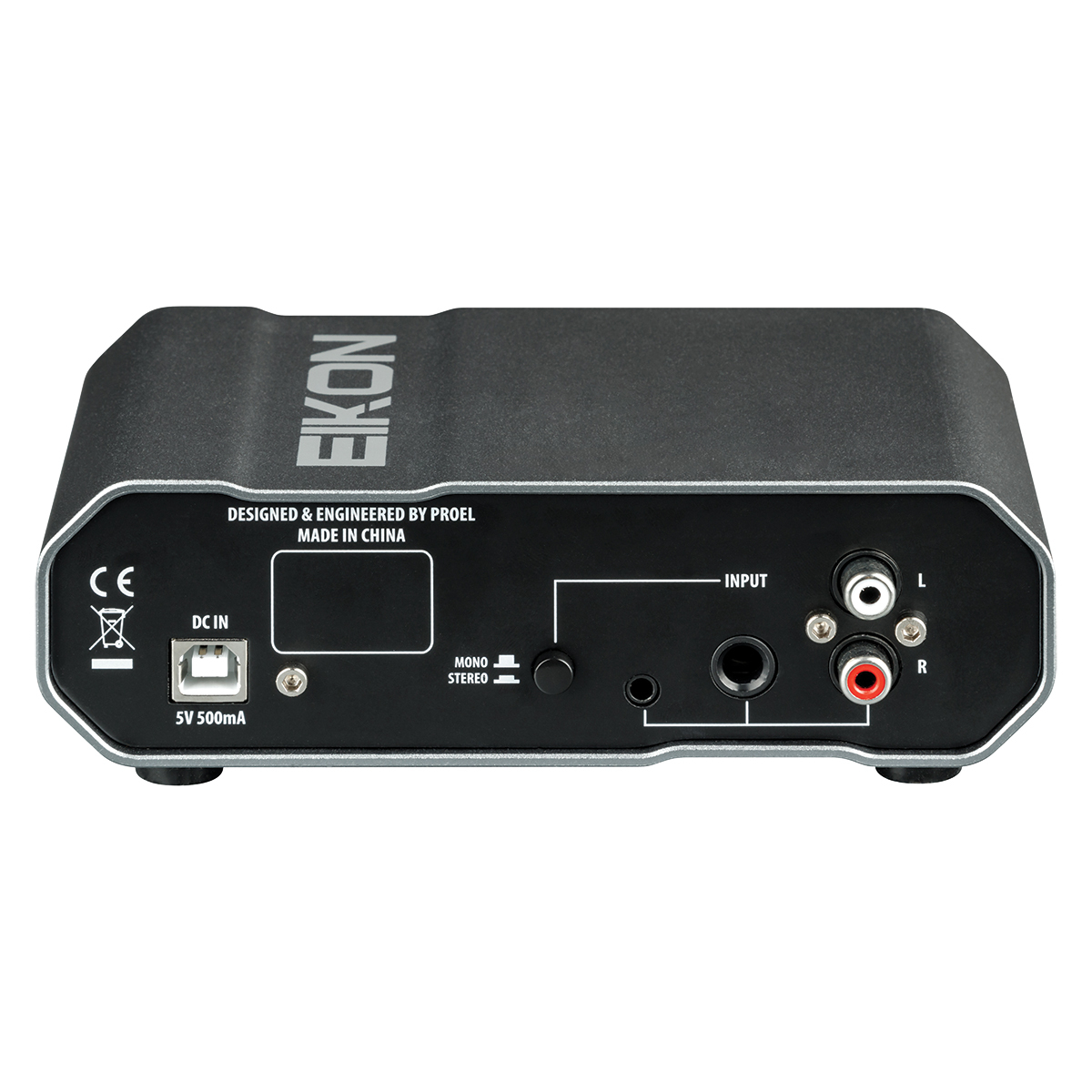

Eikon 4-Channel Headphone Amplifier

The compact HPAMP4 Headphones Amplifier features a stereo input and four headphone outputs with individual level controls. It is very useful in small studios or stages when up to four people want to listen together.

This 4-channel stereo headphone amplifier is designed for use with all types of headphones and therefore offers maximum flexibility. Its high-power stereo amplifiers with the low-noise 4580 OPAMP guarantee the highest sonic quality even at maximum volume. The input connections with 1/4” jack, mini-jack, RCA and mono/stereo switch together with output connections 1/4” jack and mini-jack allow the maximum flexibility without the need of special connection adapters.

INPUT SECTION

Connectors

2x RCA, 1x 1/4" JACK stereo, 1x 1/8" JACK stereo

Inputs

1x stereo

Input Impedance

20 Kohm

Max Input Level

+20 dBu

OUTPUT SECTION

Connectors

4x 1/4" JACK stereo or 1/8" JACK stereo

Outputs

4x HEADPHONES stereo

Max output 32ohm

2x 100mW (each channel)

Max output 600ohm

2x 100mW (each channel)

Load Impedance

min 16 ohm per channel

Max Gain

+20 dB (each channel)

SYSTEM PERFORMANCE

Distortion (THD)

0.02%

Noise

< -98 dBu unweighted

Frequency Response

< 20 Hz - 20 KHz (-3dB)

POWER SUPPLY

Connector

USB Type B

AC/DC Adapter Input

100-240V ~ (±10%) 50/60Hz

AC/DC Adapter Output

5V-1A (5W)

Supplied Cable

1.2m USB Type A - Type B

GENERAL

Controls

4x OUTPUT LEVEL, INPUT STEREO/MONO SWITCH

Indicators

Power ON

Dimensions (WxHxD)

160 x 52 x 106mm

Weight

0.5kg (main w/out cable)

Download User Manual Here

2 YEAR LIMITED WARRANTY + 2 YEAR EXTENDED WARRANTY (application required)
